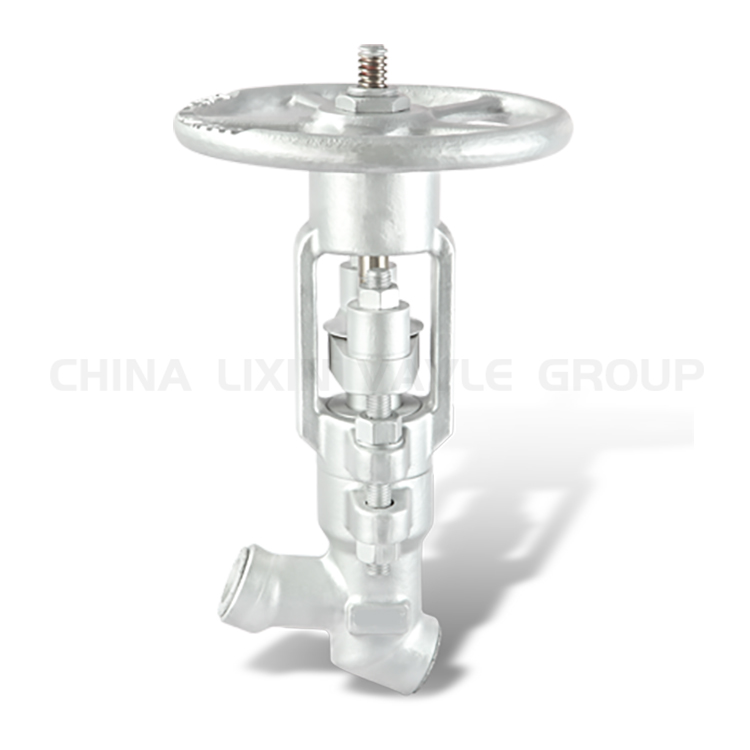

Lixin Y Type Globe Valve is suitable for petroleum, chemical, pharmaceutical, chemical fertilizer, the power industry under various working conditions such as pipeline, cut off or connect medium.

Main Features :

Lixin Y Type Globe Valve is one of the most widely used valves. Its popularity is due to the small friction between sealing surfaces during opening and closing, relatively durable, small opening height, easy manufacture and convenient maintenance. It is suitable for high pressure as well as middle pressure. Its closing principle is that, depending on the pressure of the valve bar, the sealing surface of the valve disc and the sealing surface of the valve seat are closely fitted to prevent media circulation.

Design Features :

Reasonable structure,reliable sealing,excellent performance,beautiful shape;

Convenient manufactuing and maintenance;

Short opening and closing time;

The sealing surface has anti-abrasion and erosion-proof;

Parts,flange and butt welding end dimensions can be reasonably selected according to actual working conditions or user requirements meet various engineering needs.

Valve Brand：Lixin
Valve Structure：Y Type Globe Valve
Valve Material ：Carbon Steel/ Stainless Steel/Alloy Steel etc.
Nominal Diameter：1/2″～24″
Valve End Connection：RF, RTJ,BW
Valve Pressure range：Class150～900
Working temperature：-101℃～+650℃
MOQ：1 SET
Operation：Hand wheel, gear box, Electric etc.
Certificate：DIN 3356,ANSI B16.10,GB/T 12233,GB/T 12235
