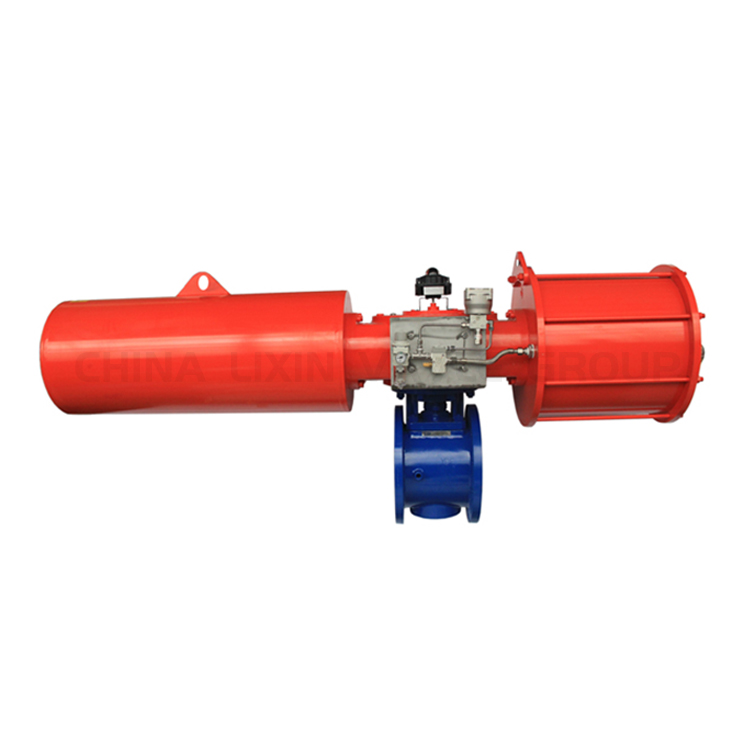

Pneumatic Jacket Sleeve type soft sealing Plug Valve

LIXIN’s sleeve plug valve is fitted around PTFE sleeves , which remove any surface contact to prevent friction damages. With the lubricating factor of the PTFE sleeves, LIXIN’s sleeved plug valves require nearly no maintenance and are built to last.

Sleeve plug valve setup are ideal for Petroleum, chemical, pharmaceutical, fertilizer and electric power industries etc. With dedicated workshops and superior mold casting capabilities, LIXIN is sure to meet your plug valve needs.

INQUIRE NOW

Regular, short pattern

Blowout proof stem

One-piece plug and body

Body is fireproof,but inner cavity without fireproof

Technical Specifications:
Size Range

NPS 1/2″-24″?/ DN15-600mm

Main Material

Carbon steel,Stainless Steel,Aluminum Bronze,Duplex steel etc. (Other materials are available under request.)

Temperature Rating

-29?~ +180°C

Stem material

Stainless steel

Pressure Rating

I.0Mpa?~ 4.0Mpa ?150LB?~ 600LB

leakage level

Zero Leakage

Plug Material

Carbon Steel,Stainless steel,Duplex steel etc.

Flange Drilling

ASME B16.5,EN1092,GOST 33259,BS etc.

Seat Material

PTFE,RPTFE

Port Type

Reduce Port

Design Standard

API599,API 6D,ASME B16.34

Test Standard

API 598,EN12266-1,ISO 5208,API 6D

Face to Face

API 16.10,EN558-1,API 599

Operation

Lever, Worm Gear,Electric,Pneumatic ,etc.

Application

On the pipelines of various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and electric power industries, cut off or connect the pipeline medium.



Other

The carefully selected materials and contemporary design make our plug valve highly recognized.

If our Plug Valve cannot meet your choice, we can provide you with special made.





Chief Features:

The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance;

Its tightness is achieved by the sealing surface around the ferrule. Unique 360°metal lip secures the ferrule.

The valve has no cavity for media to accumulate.

The metal lip provides self-cleaning when the cock rotates and is suitable for viscous and fouling-prone conditions.

Two-way flow, more convenient to install and use.
