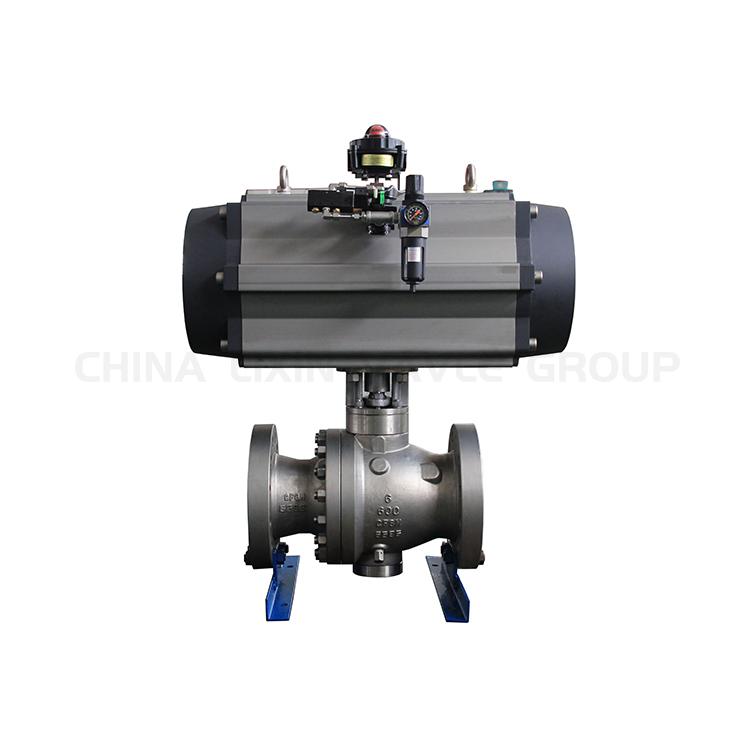

Fixed ball valve is a new generation of high-performance ball valve, suitable for long-distance pipelines and general industrial pipelines. Its strength, safety, and resistance to harsh environments have been specially considered during design. It is suitable for various corrosive and non-corrosive media.
Product Description:
main feature
The fixed ball valve?has small torque, small valve seat deformation, stable sealing performance and long service life. It is suitable for high pressure and large diameter occasions.
product specifications
| Implementation standards | ||
| American Standard | National standard | |
| Valve design | API6D ASME16.34 | GB12237 |
| Valve-Pressure Temperature Rating | ASME B16.34 | GB12234 |
| Structure length | ASME B16.10 | GB12221 |
| connecting flange | ASME B16.34 ASME B16.47a | GB9113 JB79 |
| Butt welding end | ASME B16.25 | GB12224 |
| Inspection and testing | API6D API598 | GB/T13927 |
Product Range
Main material: carbon steel, stainless steel, alloy steel
Nominal diameter:?DN15-DN800
Pressure range:?1.0-100Mpa
Applicable temperature:?-29-450?℃
Operation mode: manual, pneumatic?, electric, hydraulic
Applicable media: water, steam, petroleum, coal, fiber, thick and corrosive media
