Technical Specifications：
| Size Range
NPS 2″-48″?/ DN50-1200mm |
Main Material
Carbon steel,Stainless Steel etc. (Other materials are available under request.) |
| Temperature Rating
-196?~ +400°C |
Stem Material
Stainless steel |
| Pressure Rating
I.0Mpa?~ 42.0Mpa ?150LB?~ 2500LB |
leakage level
Zero Leakage |
| Ball Material
Carbon Steel,Stainless steel etc. |
Flange Drilling
ASME B16.5,EN1092,GOST 33259,BS etc. |
| Seat Material
Soft Seat
PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc |
Body Style
Double Flanged,Butt Weld |
| Design Standard
API608,API 6D,EN1983,ISO17292 |
Test Standard
API 598,EN12266-1,ISO 5208, |
| Face to Face
API 6D,ISO 5752,ASME B16.10,EN558-1 |
Operation
Wench, Worm Gear, Electric, Pneumatic,etc |
| Application
Bulk liquid storage, oil & gas, LNG storage & transportation, steam distribution systems, power generation, geothermal steam, sugar & ethanol, pulp & paper liquor, refining, chemical processing, water & wastewater, air separation
|
| Other
The carefully selected materials and contemporary design make our ball valve highly recognized.
If our ball Valve cannot meet your choice, we can provide you with special made.
|
Chief Features：

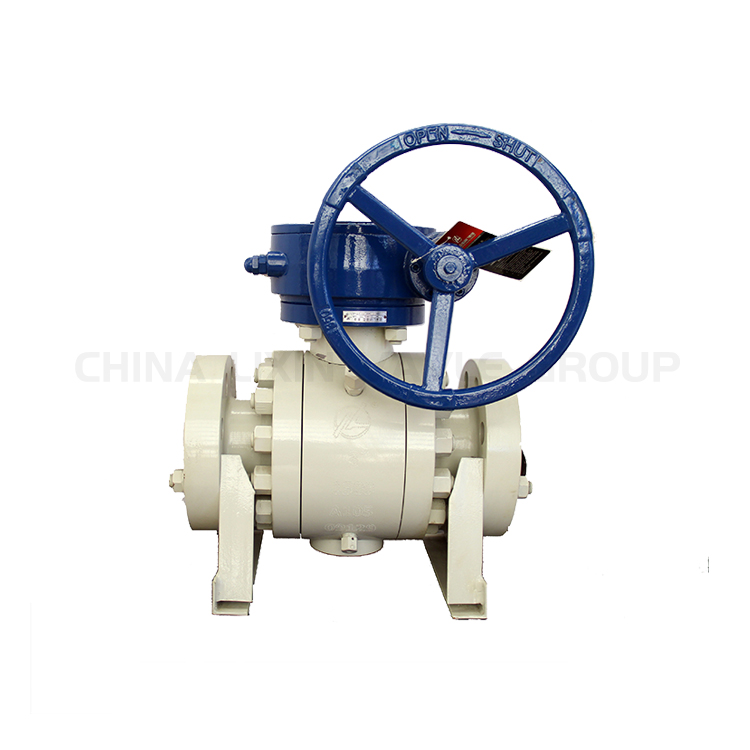

Compared with floating ball valve, when working, all the forces generated by the fluid pressure in front of the valve on the ball are transmitted to the bearing, which will not make the ball move towards the valve seat, so the valve seat will not bear excessive pressure.And the torque of trunnion ball valve is small, the valve seat deformation is small, the sealing performance is stable, and the service life is long, which is suitable for high-pressure and large-diameter occasions. Advanced spring pre-seat assembly with self-tightening feature realizes upstream sealing. Each valve has two seats, which can be sealed in each direction. Therefore, there is no flow restriction for installation, and it is bi-directional. The valve is generally installed horizontally.
A variety of soft seal and hard seal seat materials to meet more process conditions
According to your requirement the valve can meets NACE standard, fugitive emission function and fire test certification of API Spec 607
The seat can be designed with double or single piston and has lower operating torque
All valves have self cavity pressure relief function to ensure the safety of the pressure in the middle chamber
