main feature

1.?The fluid resistance is small, and the full-diameter ball valve has basically no flow resistance.

2.?Simple structure, small size and light weight.

3.?Tight and reliable.?It has two sealing surfaces, and the sealing surface materials of ball valves currently use various plastics, which have good sealing properties and can achieve complete sealing.?in real

It has also been widely used in air systems.

4. Easy to operate, quick to open and close, just rotate?90°?from fully open to fully closed?, convenient for long-distance control.

5.?It is easy to maintain. The ball valve has a simple structure and the sealing rings are generally movable, making it easy to disassemble and replace.

6.?When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium. When the medium passes, it will not cause erosion of the valve sealing surface.

7.?It has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be applied from high vacuum to high pressure.

8.?Since the ball valve has wiping properties during the opening and closing process, it can be used in media with suspended solid particles.

product specifications

Design specification:?API6D ANSI B16.34

Structure length:?API6D ANSI B16.10

Connection standard:?ANSI B16.5

Pressure test:?API6D API598

Product Range

Main material: carbon steel, stainless steel, etc.

Nominal diameter:?DN15-DN250

Pressure range:?1.6-6.4Mpa

Applicable temperature:?-196-350℃

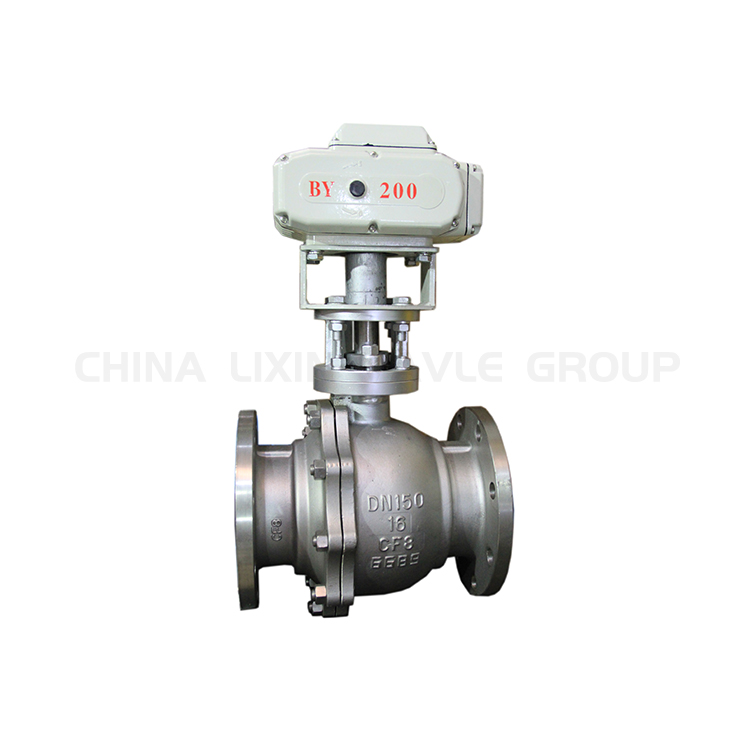

Operation mode: manual, pneumatic, electric, hydraulic

Applicable media: water, steam, oil, etc.
