Technical Specifications
| Size Range
NPS 1/2″-48″?/ DN15-1200mm |
Main Material
steel plate |
| Temperature Rating
-60?~ +600°C |
Leakage Level
Zero Leakage |
| Pressure Rating
I.0Mpa?~ 42.0Mpa ?150LB?~2500LB |
Flange Drilling
ASME B16.5, EN1092, GOST 33259, BS etc. |
| Screen Material
SS304, SS316, SS316L, F51, Monel, Hastelloy,etc |
Connection End
ASME B16.5 ASME B16.47 ASME B16.25 ASME B16.11 |
| Face to Face
MFG’S, ASME B16.10, EN558-1 |
Test Standard
API 598, EN 12266-1, ISO 5208 |
| Design Standard
ASME B16.34 |
|
| Application
Chemical, Beverage, Wine Making, Pharmaceutical, Food Processing, Petroleum Refining & oilfield, Transportation, Ultrapure Water, Marine, Pulp&Paper, Mining, Power/FGD, Nuclear Power, Irrigation, Water&Wastewater Treatment, Desalination, Steel Production. |
| Other
The carefully selected materials and contemporary design make our basket type ?filter?valve highly recognized.
If our basket type ?filter cannot meet your choice, we can provide you with special made. |
Chief Features

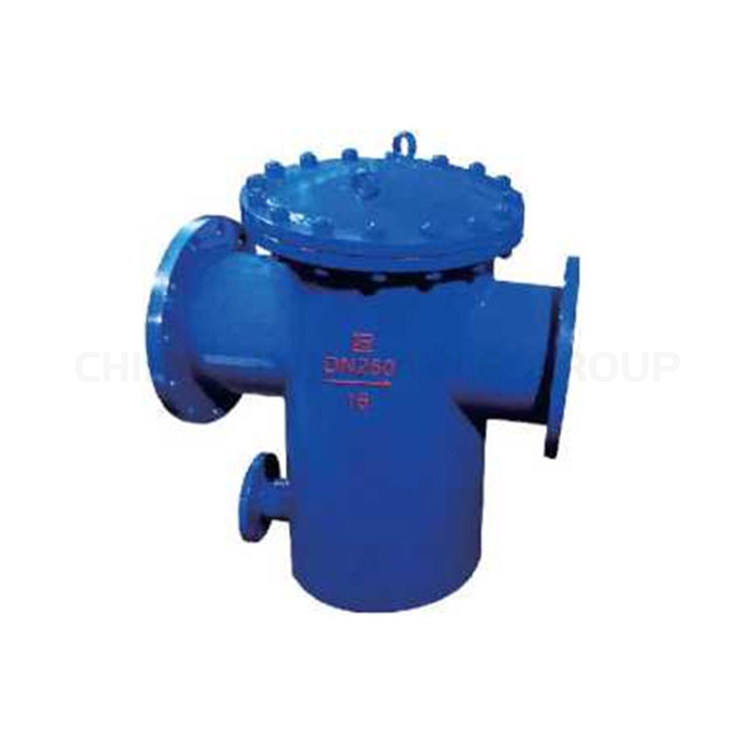

Basket type filter is usually installed at the inlet of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to remove impurities in the medium and protect the normal use of the valve and equipment.
Lixin basket type filter can also be installed separately, with beautiful appearance, fine filter hole, small resistance, convenient flushing, sewage and other unique features.
Lixin basket type filter, as an indispensable high-efficiency filter in the purification equipment project, has played a great role in the treatment of domestic wastewater and industrial wastewater. The advantages of Lixin basket type filter in operation include full automation, maintenance free, large filtering area, high filter efficiency, long service life, stainless steel material, optional filtering precision and complete specifications. Compared with other filtration equipment, it is one of the most effective equipment in the reclaimed water reuse project, and the water quality after basket type filter treatment not only meets the national discharge standard, but also realizes the purpose of reuse and recycling.
