3.way,4-way plug valve is applicable to change the media flowing direction or to distribute the media,in various industries.
3-way,4-way plug valve setup are ideal for Petroleum, chemical, pharmaceutical, fertilizer and electric power industries etc. With dedicated workshops and superior mold casting capabilities, LIXIN is sure to meet your plug valve needs.

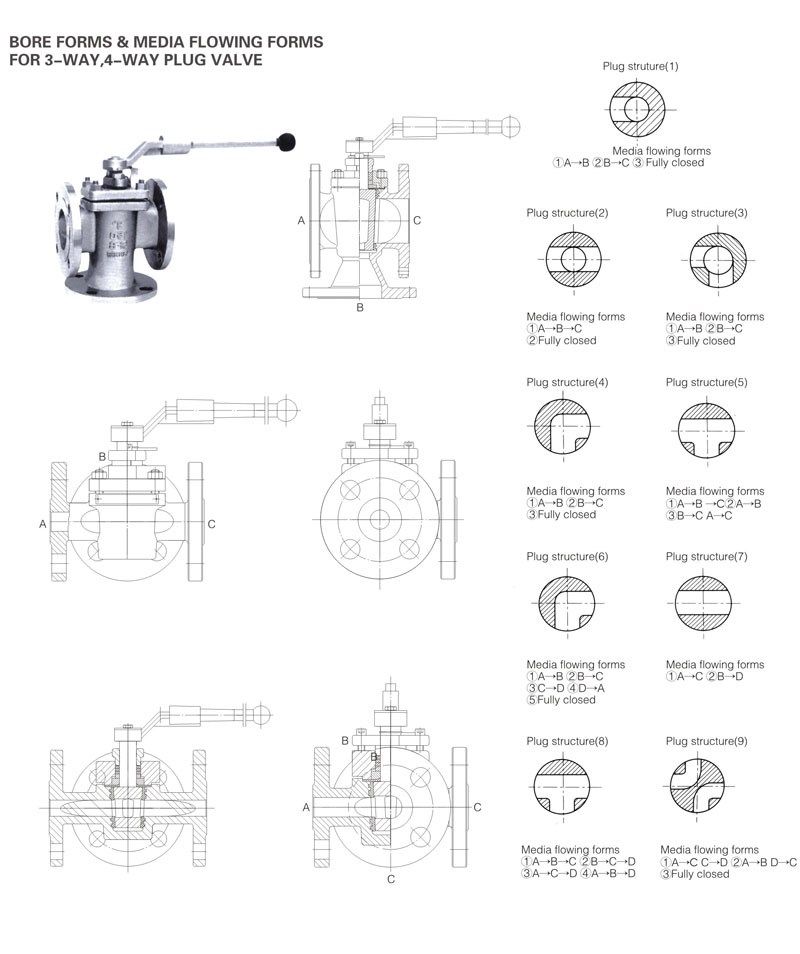

According to different conditions,the 3-way,4-way plug valves can be designed into diverse media flowing forms (such as L-type, T-type, etc.), various materials and various sealing forms (such as metal seal, sleeve type seal, lubricated seal, etc.) .
| Structural formation
BC |
Driving manner
Wrench wheel, worm ＆ worm geer, pneumatic, electric-actuated |
| Design standard
API599、API6D、 GB12240 |
Face to face
ASME B16.10, GB12221, DIN3202 |
| Flange ends
ASME B16.5, JB79, GB9113, DIN2543-2545 |
Test & inspection
API598, API6D, GB13927, DIN3230 |
| Nominal pressure (LB) | Shell test (MPa) | Sealing test (MPa) | Nominal pressure (LB) | Shell test (MPa) | Sealing test (MPa) |
| 150 | 3.0 | 2.2 | 1.6 | 2.4 | 1.76 |
| 300 | 7.5 | 5.5 | 2.5 | 3.75 | 2.75 |
| 600 | 15.0 | 11.0 | 4.0 | 6.0 | 4.4 |
| 900 | 22.5 | 16.5 | 6.4 | 9.6 | 7.04 |
| 10.0 | 15.0 | 11.0 | |||
| 16.0 | 24.0 | 17.6 |
