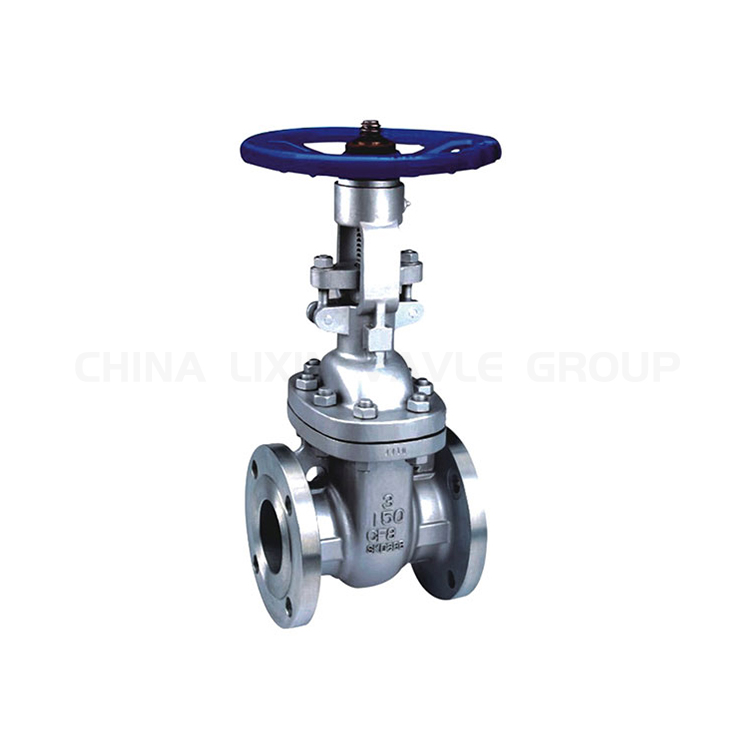

An ideal component for giving flow logic to pipelines, gate valves permit or stop medium’s flow to a specific location. The threaded operation of the gate makes it suitable for different applications and can work with liquid or gaseous media.
Lixin strict quality management system to ensure every product to meet international standards with short leas times.With dedicated workshops and superior mold casting capabilities, LIXIN is sure to meet your needs.
| Size Range
NPS 2″-48″?/ DN50-1200mm |
Main Material
Carbon steel, Stainless Steel etc. |
| Temperature Rating
-196?~ +600°C |
Stem Material
Stainless steel |
| Pressure Rating
I.0Mpa?~ 25.0Mpa ?150LB?~ 1500LB |
Leakage Level
Zero Leakage |
| Disc Material
Carbon Steel, Stainless steel etc. |
Flange Drilling
ASME B16.5, EN1092, GOST 33259, BS etc. |
| Seat Material
Metal seat |
Body Style
Double Flanged, Butt Weld |
| Design Standard
API 600, EN10434 etc. |
Test Standard
API 598, EN 12266-1, ISO 5208 |
| Face to Face
ASME B16.10, DIN3202, EN558-1 |
Operation
Handwheel, Worm Gear, Electric, Pneumatic, etc. |
| Application
Oil and Gas Pipeline, Offshore Platforms, Onshore Terminals, LNG storage & transportation, steam distribution systems, power generation, geothermal steam, sugar & ethanol, pulp & paper liquor, refining, chemical processing, water & wastewater, air separation |
|
| Other
The carefully selected materials and contemporary design make our gate valve highly recognized. If our gate Valve cannot meet your choice, we can provide you with special made. |
|
Full port,Outside screw and yoke(OS&Y)
Bolted bonnet
Flexible wedge,full guided
Structure improve on API
Rising Stem and non-rising handwheel
Each valve is shell, seat and backseat pressure tested per industry standard
According to requirement the valve can meets NACE standard and fire test certification
